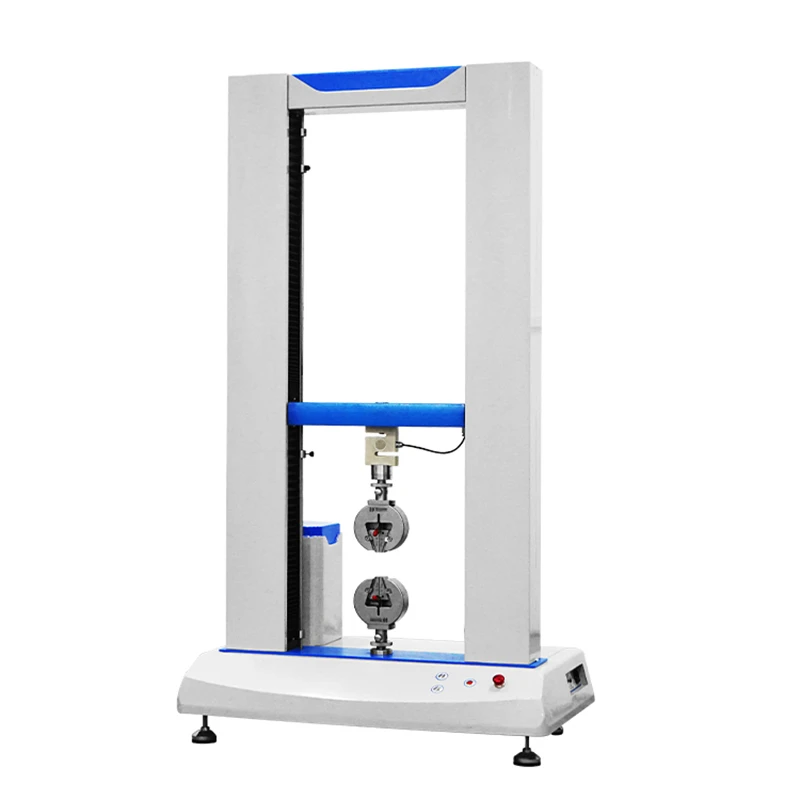

Ultimate Tensile Machine

Ultimate Tensile Machine

The Ultimate Tensile Machine is a high-capacity testing system for determining ultimate tensile strength and post-yield behavior in specimens that require substantial loading force. It is used in structural-steel laboratories, heavy-equipment manufacturing, construction-material testing, metal-processing plants, research institutes, and inspection facilities for bars, plates, fasteners, weld coupons, heavy sections, and other load-bearing materials.
Send Inquiry
Product Introduction

Product Overview



The Ultimate Tensile Machine is a high-capacity testing system for determining ultimate tensile strength and post-yield behavior in specimens that require substantial loading force. It is used in structural-steel laboratories, heavy-equipment manufacturing, construction-material testing, metal-processing plants, research institutes, and inspection facilities for bars, plates, fasteners, weld coupons, heavy sections, and other load-bearing materials.

-02--02



Key Advantages



600 kN Hydraulic Loading for Heavy Specimens

The high-capacity system develops up to 600 kN for structural steel, large fasteners, heavy coupons, weld specimens, and other load-bearing materials. It maintains loading where lower-capacity electromechanical frames would reach their limit before the specimen develops its ultimate tensile force.

Complete Loading Through Yield, Hardening, and Fracture

The machine continues beyond first yield while the material strain-hardens, reaches maximum force, begins necking, and finally separates. This uninterrupted sequence provides the full post-yield response needed to compare heavy-metal heats, production routes, or welded and base-material sections.

800 mm Stroke for Long Gauge Lengths and Large Grips

An 800 mm test stroke accommodates long specimens, substantial grip bodies, and the extension that develops before fracture. Large bars and plate coupons can be tested at the required initial separation without sacrificing the travel needed for post-yield deformation.



Customization Capabilities



Grip openings, jaw profiles, and fixture interfaces can be configured for flat plate, round bar, reinforcing bar, threaded fasteners, chains, weld specimens, and customer components. The test space and accessory mounting can be adjusted around specimen length, diameter, and the required extensometer gauge.

The control and reporting package can be prepared for tensile strength, yield values, elongation, reduction of area, proof load, and customer-defined acceptance limits. Test methods and report fields can be aligned with ASTM E8/E8M, ASTM A370, ISO 6892-1, GB standards, or an established plant procedure.



Quality Control



The load frame, hydraulic or drive system, load sensor, grip centerline, and high-load connections are inspected before calibration. Pressure stability, leakage, crosshead movement, and jaw engagement are checked under load so that the machine remains controlled as the specimen approaches fracture.

The force channel is verified at multiple points across the high-capacity range. Stroke, speed, overload response, travel limits, emergency stop, and specimen-protection functions are then tested through a complete loading cycle before final release.



Technical Data Table



Parameter

Value

Max Load Capacity

600 kN

Test Stroke

800 mm

Accuracy

±0.5%

Displacement Resolution

0.01 mm

Weight

400 kg



FAQ

Q: What is the minimum order quantity?

A: The MOQ is 1 unit.

Q: What is the standard payment term?

A: Full payment is required before shipment.

Q: What is the standard machine weight?

A: The standard net weight is approximately 400 kg.

Q: Are calibration documents supplied?

A: A calibration certificate and user manual are supplied.
