Insulation Resistance Measurement Device
Four Models for Different Jobs

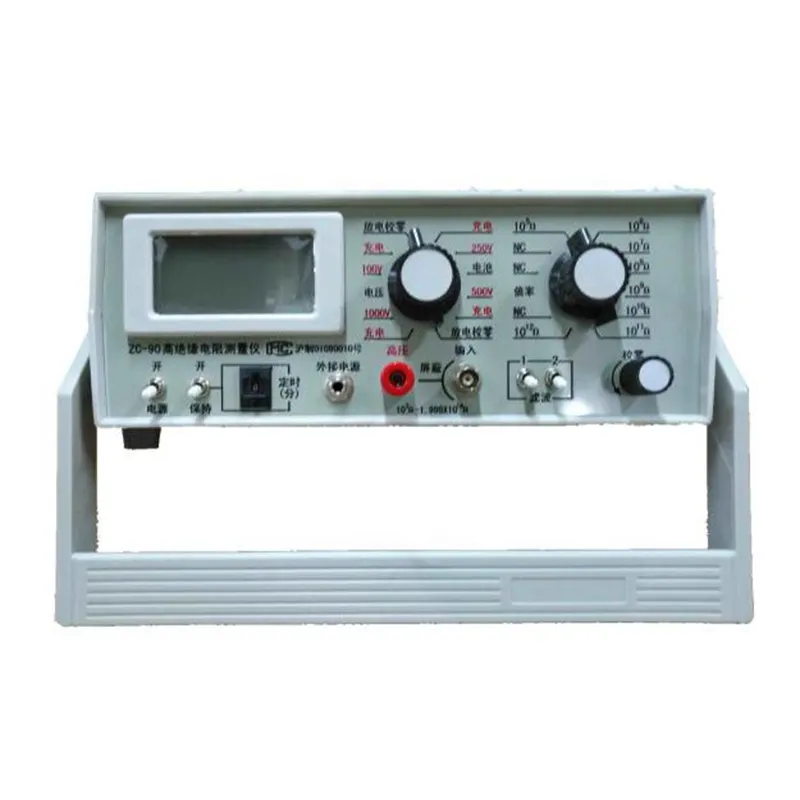

Our insulation resistance measurement device comes in four models. ZC-90D is for anti-static material measurement and anti-static engineering inspection. ZC-90E is for wire and cable insulation resistance measurement. ZC-90F is for volume and surface resistivity measurement of insulation materials. ZC-90G is the high-end model for lab research and ultra-high insulation measurement. All models have high accuracy with basic error ±1%. They have stable readings and 3 1/2 digit display. They also have strong anti-interference. These devices meet GB/T3048.5 and other standards. This product family covers almost all needs.
What Each Model Does Best

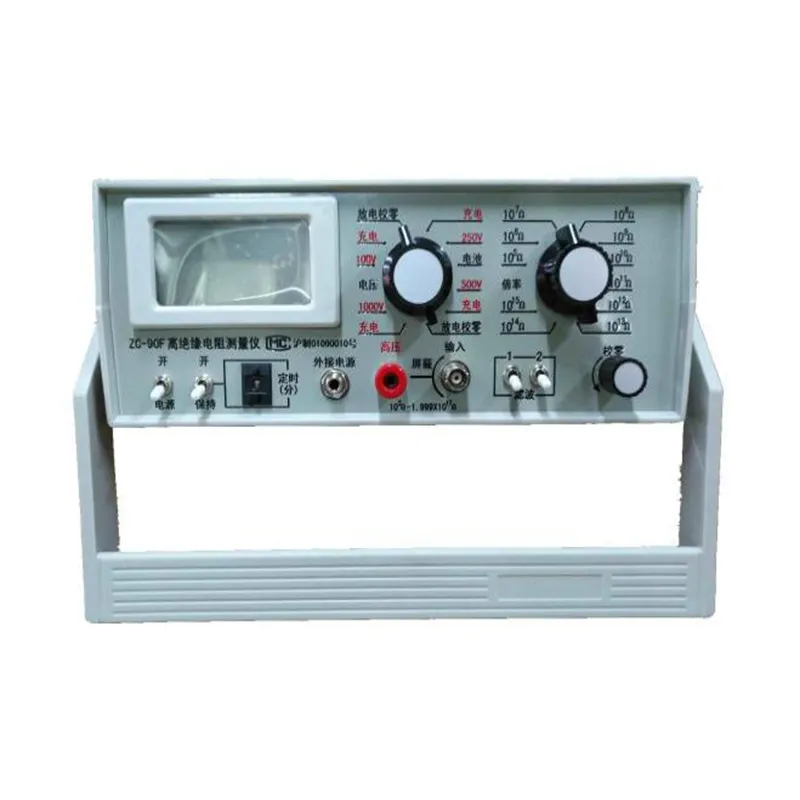

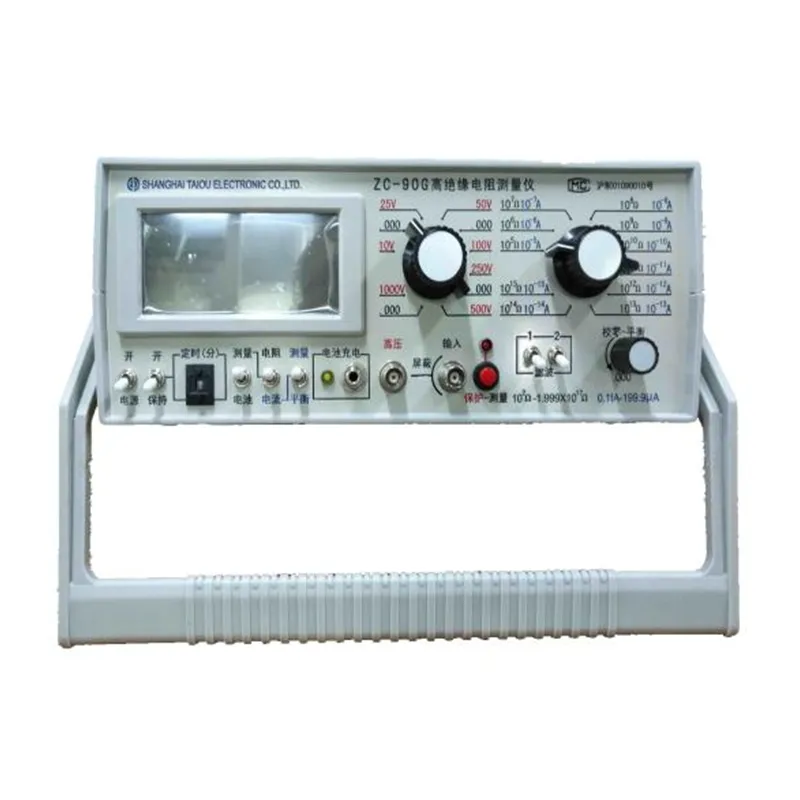

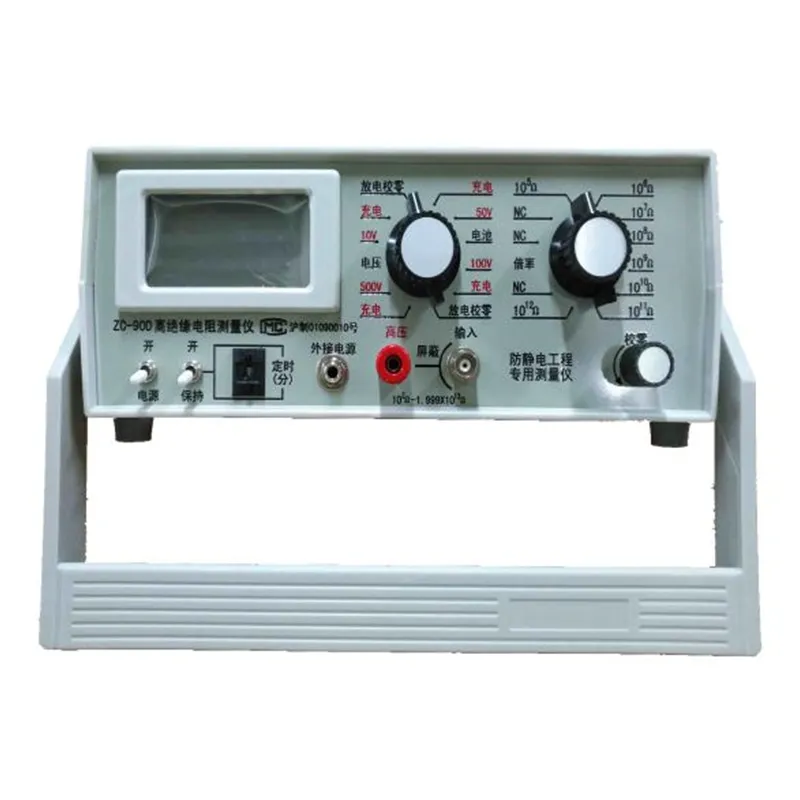

The ZC-90D has test voltages of 10V, 50V, 100V, and 500V. Its resistance range is 0 to 10^13 Ω with resolution 100Ω. It works for anti-static flooring, mining conveyor belt surface resistance, and anti-static shoes, hats, gloves, and clothing. The ZC-90E has test voltages of 100V, 250V, 500V, and 1000V. Its range is 0 to 10^16 Ω with resolution 1000Ω. It works for common wires, cables, and XLPE cables. It also measures volume and surface resistivity. The ZC-90F has the same test voltages but a higher range of 0 to 10^17 Ω. It is also for volume and surface resistivity. The ZC-90G is the strongest. It has seven test voltages: 10V, 25V, 50V, 100V, 250V, 500V, and 1000V. Its resistance range is 0 to 2×10^17 Ω with resolution 100Ω. It can also measure micro current from 0.1fA (10^-16 A) to 199.9µA. This insulation resistance measurement device works for electronics, photoelectricity, bio-current, and atomic energy research.
Accessories and Warranty
Optional accessories include electrostatic electrodes, 90D electrodes, an electrode box, and a constant temperature water bath. The packing list includes the main unit, test leads, external power supply, manual, and certificate. We give one year warranty (wear parts not included). After-sale service responds 7×24 hours. For export, we support FOB terms and use fumigation-free artificial board packing. Choose the right insulation resistance measurement device for your application.
|
Model |
Test Voltage |
Resistance Range |
Resolution |
Main Use |
Special Function |
|
ZC-90D |
10V,50V,100V,500V |
0~10^13 Ω |
100Ω |
Anti-static materials, anti-static engineering, mining conveyor belt |
Special for anti-static testing |
|
ZC-90E |
100V,250V,500V,1000V |
0~10^16 Ω |
1000Ω |
Wire and cable insulation resistance, volume/surface resistivity |
Meets GB/T3048.5 |
|
ZC-90F |
100V,250V,500V,1000V |
0~10^17 Ω |
1000Ω |
Volume/surface resistivity of insulation materials, wire and cable |
Ultra-high range |
|
ZC-90G |
10V,25V,50V,100V,250V,500V,1000V |
0~2×10^17 Ω |
100Ω |
Lab, electronics, photoelectricity, bio-current, atomic energy |
Micro current 0.1fA~199.9µA |
Detailed Basic Error Table (Example from ZC-90D, other models similar but different ranges)
|
Measuring Range (10V/50V) |
Basic Error |
Measuring Range (100V/500V) |
Basic Error |
|
0-10^8 |
±(1% of reading + 2 digits) |
0-10^9 |
±(1% of reading + 2 digits) |
|
>10^8-10^9 |
±(2% of reading + 2 digits) |
>10^9-10^10 |
±(2% of reading + 2 digits) |
|
>10^9-10^11 |
±(3% of reading + 2 digits) |
>10^10-10^12 |
±(3% of reading + 2 digits) |
|
>10^11-10^12 |
±(5% of reading + 3 digits) |
>10^12-10^13 |
±(5% of reading + 3 digits) |
|
>10^12-10^13 |
±(10% of reading + 5 digits) |
>10^13-10^14 |
±(10% of reading + 5 digits) |
