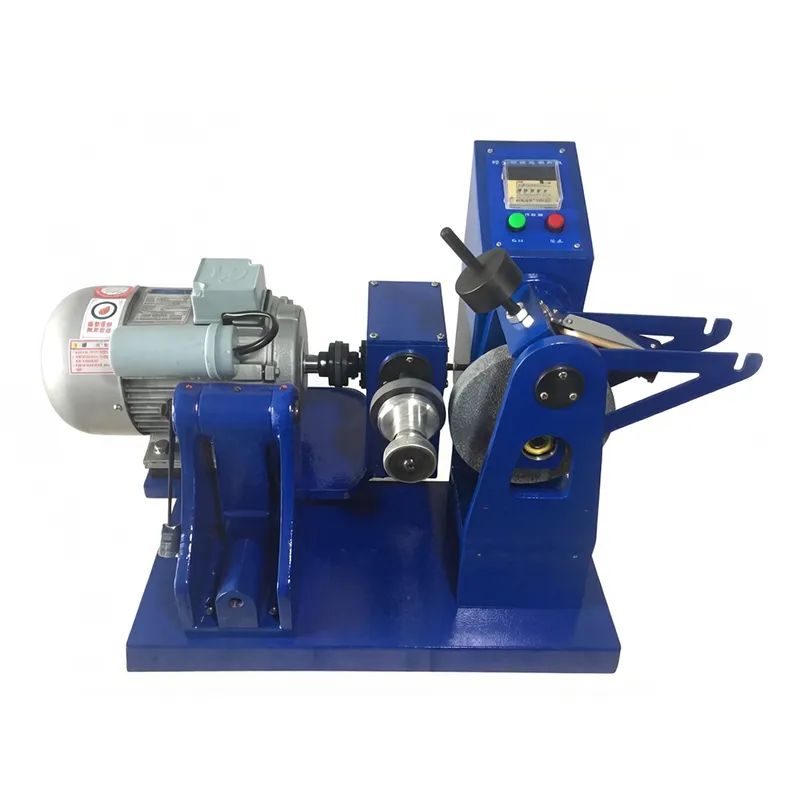

Akron Abrasion Tester
Measure Wear Resistance of Rubber
Our company has 17 years of experience in manufacturing testing equipment. The ZY-1002 Akron Abrasion Tester is designed to measure the wear resistance of vulcanized rubber. It complies with GB/T 1689 standard and is widely used in rubber and tire manufacturing industries for quality control.
The machine tests wear resistance by rotating the rubber sample against a grinding wheel under a specified angle and load, and measuring the wear volume over a set distance.
The force applied to the rubber wheel is 26.7 N (2.7 kgf). The rubber wheel shaft speed is 76 ± 2 r/min, and the grinding wheel shaft speed is 33–35 r/min. The angle between the two shafts is adjustable from 0° to 45°.
Simple Operation with Auto Stop
The Akron abrasion tester uses an aluminum oxide grinding wheel with grain size 36, clay binder, and medium-hardness grade 2. The grinding wheel size is 150 × 32 × 25 mm.
The test sample is a strip with a width of 12.7 ± 0.2 mm and a thickness of 3.2 ± 0.2 mm. Both sides of the sample must be polished before being attached to the rubber wheel. No tension should be applied during installation.
The rubber wheel has a diameter of approximately 68 mm, a thickness of 12.7 ± 0.2 mm, and a hardness of 75–80 Shore A.
The machine features digital setting and display of wear cycles and stops automatically when the preset count is reached.
The mechanical system and electrical control are integrated into one unit, featuring a compact and user-friendly design.
Full Quality Checks and Fast Delivery
We have our own R&D team and can manufacture products according to your drawings or prototypes. OEM and ODM services are supported.
We implement strict quality control at every stage, including incoming inspection, assembly, calibration, and final testing before shipment.
A one-year warranty is provided (excluding wear parts). If the product is damaged during shipping, we will assist with claims and provide repair or replacement services.
The minimum order quantity is one unit. Different models and colors can be combined in a single order.
Standard products require 7–10 days for production, while customized products take approximately 30 days. Our monthly production capacity is 50–100 units, ensuring stable and timely delivery.
We can provide production updates (photos or videos) upon request.
Technical Parameters
|
Item |
Parameter |
|
Force on Rubber Wheel |
26.7 N (2.7 kgf) |
|
Rubber Wheel Shaft Speed |
76 ± 2 r/min |
|
Grinding Wheel Shaft Speed |
33–35 r/min |
|
Adjustable Angle Range |
0°–45° |
|
Power Supply |
AC 220 V ±10% |
|
Dimensions (W × D × H) |
600 × 480 × 400 mm |
|
Net Weight |
60 kg |
|
Grinding Wheel Spec |
Aluminum oxide, grain 36, clay binder, medium hardness grade 2, 150 × 32 × 25 mm |
|
Sample Size |
Strip: width 12.7 ± 0.2 mm, thickness 3.2 ± 0.2 mm |
|
Rubber Wheel Diameter |
Approx. 68 mm |
|
Rubber Wheel Hardness |
75–80 Shore A |
