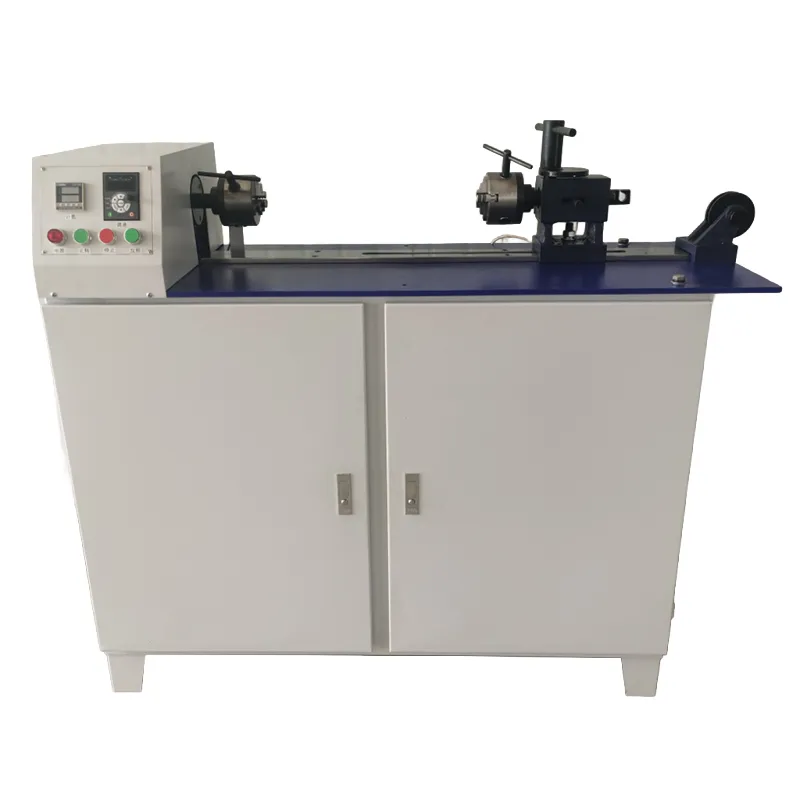

Wire Torsion and Wrapping Testing Machine

Our wire torsion and wrapping testing machine comes in two models. ZY-2002 is a pure torsion tester. ZY-2002NR is a combination model that does both torsion and wrapping. Both meet GB4909.4-2009 standard for bare wire torsion test. ZY-2002NR also meets GB4909.7-2009 standard for bare wire wrapping test. These machines are a must-have tool for steel core aluminum strand wire manufacturers. This product gives you accurate data for wire quality control.

The ZY-2002 torsion tester has size 1360×450×1110mm. It needs 220V input and 1.5KW power. The torsion speed has three settings: 10, 30, and 60 revolutions per minute. The torsion range covers copper rod φ1-8mm, aluminum rod φ1-12mm, and steel wire φ1-3mm. The sample should have no surface damage. Sample length equals effective length plus clamping length. The clamping length is about 60-70mm. This wire torsion and wrapping testing machine (torsion only) is simple and effective.

The ZY-2002NR combination model has more functions. The torsion part has size 1440×390×1080mm. It also uses 220V and 1.5KW power. Torsion speeds are also 10, 30, and 60 rpm. The torsion range is the same as ZY-2002. The wrapping part has its own test diameters. For aluminum wire, it is φ1.25-6.0mm. For steel wire, it is φ0.1-3mm. For copper wire, it is φ0.1-6.0mm. The mandrel diameter range is φ3-20mm. The right shaft head displacement distance is ≥40mm. The main shaft speed is 10 rpm. Our factory has all the production equipment. We make our own core parts. Quality is under our control. Delivery is reliable. Standard products ship in 7-10 days. Custom products take about 30 days. Repeat orders get faster delivery. We give one year warranty. After-sale support is 7×24 hours. Contact us for this wire torsion and wrapping testing machine.
