Charpy Pendulum Impact Test Machine
A Factory You Can Trust
We are Yangzhou Zhengyi from China. We have 17 years of experience in testing equipment. Our factory sits in Zhenwu Town, Jiangdu District. We have a 1000 square meter workshop with 10 skilled workers. We have our own R&D team. We develop custom solutions for our customers. Every product gets 100% full inspection before shipment. We also accept third-party inspection. You can order just one unit. One order can mix different models. We support OEM and ODM services too.
Three Models for Different Needs

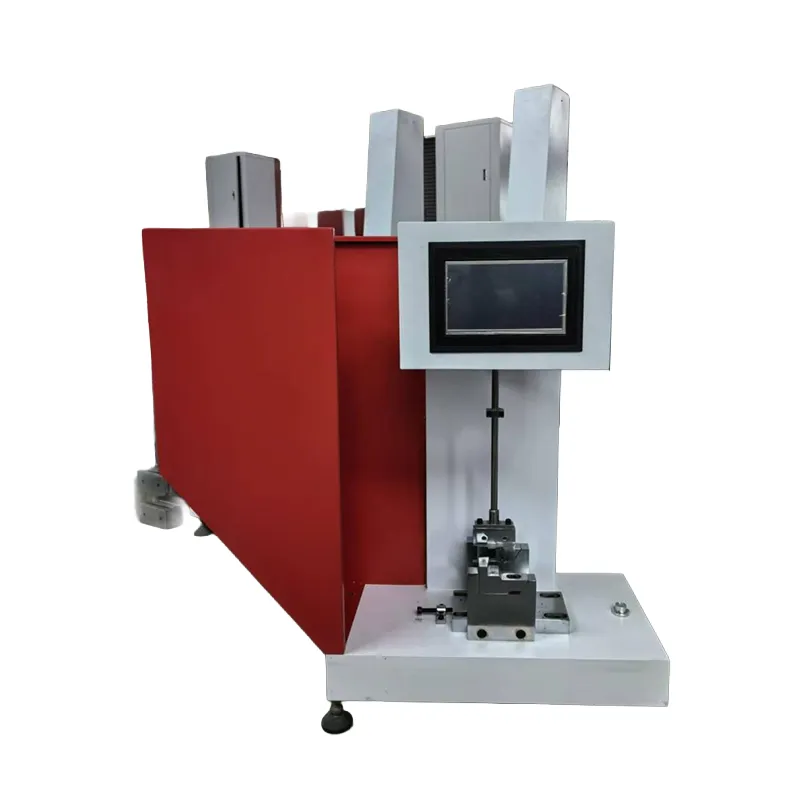

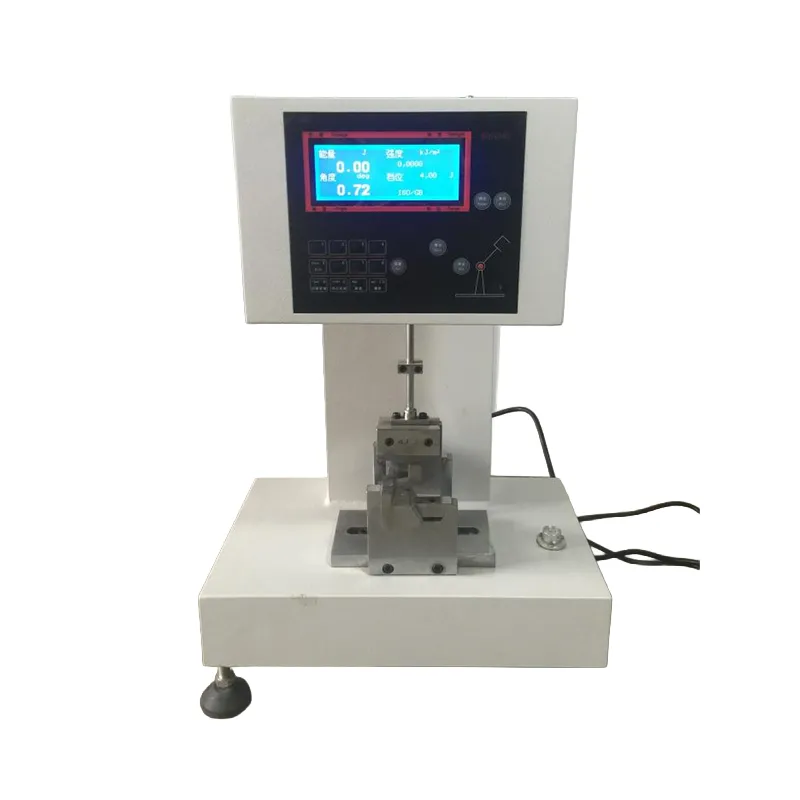

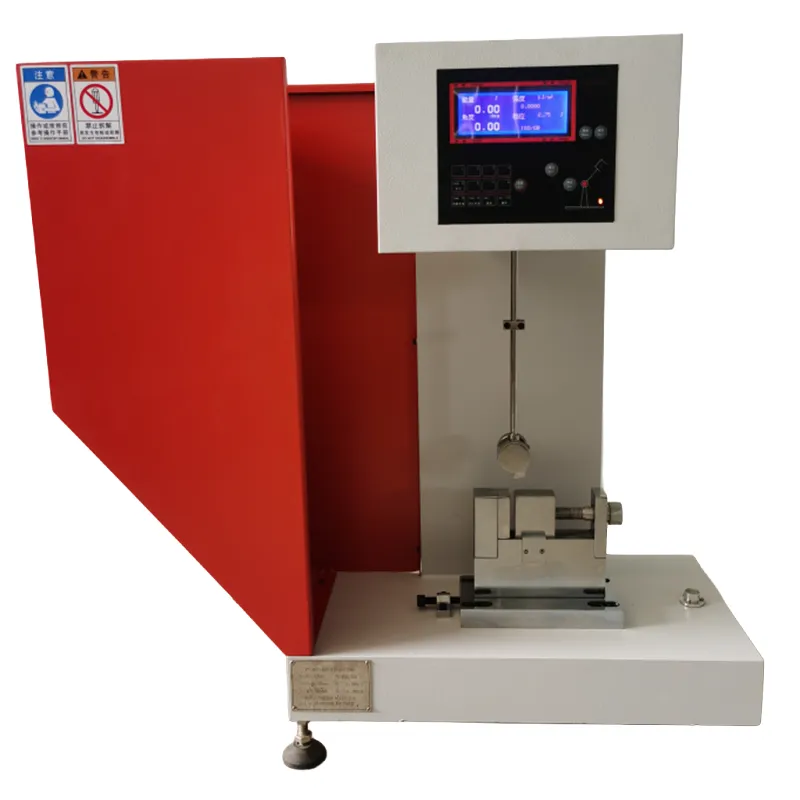

We offer three main models of this Charpy pendulum impact test machine. The first is ZY-3002S with digital display and 50J max energy. The second is ZY-3002 with touch screen and 50J max energy. The third is ZY-3002 with digital display but only 5J max energy. This small energy model works well for thin or soft materials. All three machines test rigid plastics, reinforced nylon, fiberglass, ceramics, and electrical insulation materials. They meet ISO179 and GB/T1043 standards. Operation is easy and data is accurate. This Charpy pendulum impact test machine gives you reliable impact toughness values.
Key Specs You Need to Know
The 50J models have impact speed 3.8m/s. They offer four impact energy levels: 7.5J, 15J, 25J, and 50J. Accuracy is 0.01° for angle and 0.01J for energy. Pendulum pre-lift angle is 150°±1°. The touch screen model has extra smart features. It uses an ARM Cortex-M3 core. It has a smart assistant to help hang and release the pendulum. It also has a protection system to prevent injuries. The 5J model has impact speed 2.9m/s. Its energy levels are 1.0J, 2.0J, 4.0J, and 5.0J. This Charpy pendulum impact test machine is a solid choice for material labs.
Technical Parameters
|
Model |
Impact Speed |
Impact Energy |
Pendulum Pre-lift Angle |
Striking Center Distance |
Accuracy |
Special Features |
Power |
|
ZY-3002S (Digital, 50J) |
3.8m/s |
7.5J,15J,25J,50J |
150°±1° |
395mm |
Angle 0.01°, energy 0.01J |
Digital display, 4 sample types |
AC220V 50Hz |
|
ZY-3002 (Touch screen, 50J) |
3.8m/s |
7.5J,15J,25J,50J |
150°±1° |
395mm |
Angle 0.01°, energy 0.01J |
Touch screen, ARM control, smart assistant, multi-language |
AC220V 50Hz |
|
ZY-3002 (Digital, 5J) |
2.9m/s |
1.0J,2.0J,4.0J,5.0J |
150° |
230mm |
Angle 0.2°, energy 0.05% |
Digital display, 4 jaw spans, energy units switchable |
AC220V 50Hz |
Common Sample Types
|
Sample Type |
Length L (mm) |
Width B (mm) |
Thickness D (mm) |
Support Span (mm) |
|
1 |
80±2 |
10±0.5 |
4±0.2 |
60 |
|
2 |
50±2 |
5±0.2 |
2±0.2 |
40 |
|
3 |
120±2 |
15±0.5 |
10±0.5 |
70 |
|
4 |
125±2 |
13±0.5 |
13±0.5 |
95 |
