Melt Flow Index Instrument
A Simple Name for a Smart Tool
We are a 17-year-old factory. Our name is Yangzhou Zhengyi. We make melt flow index instruments and other plastic testing equipment. We have 1000 square meters of factory space and 10 workers. You can order just one unit of our product. We also support OEM and ODM. We do 100% full inspection on every unit before shipping. You are welcome to use third-party inspection. This melt flow index instrument measures melt flow rate for thermoplastics in their viscous flow state.
Two Models for Different Budgets

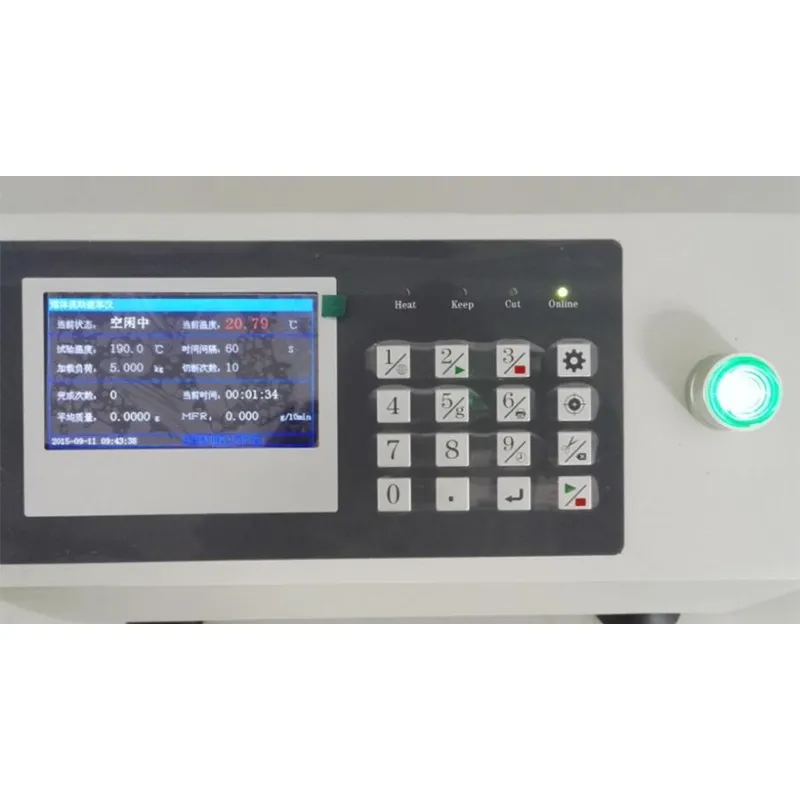

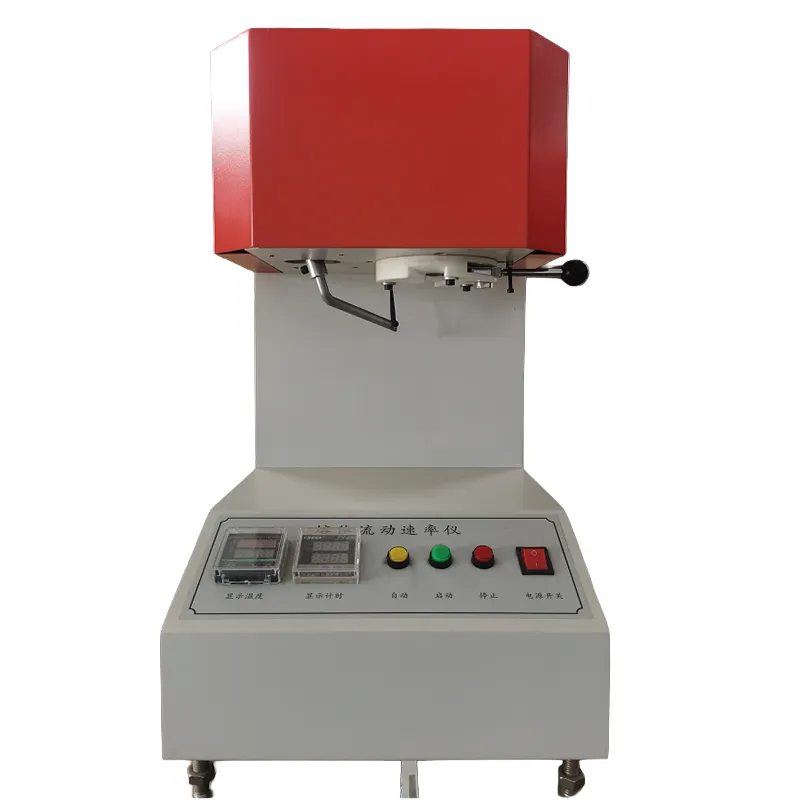

Our product has two models. ZY-3004S is the standard type. ZY-3004Y is the upgraded type with touch screen and a micro printer. Both work for high-temperature engineering plastics like polycarbonate, fluoroplastic, and nylon. They also work for common plastics like polyethylene, polystyrene, polypropylene, ABS, and polyoxymethylene. These machines are widely used in plastic production, petrochemicals, research, and inspection departments. Both machines work on the same principle. Melt flow rate means the mass (MFR) or volume (MVR) of melt that flows through a standard die every 10 minutes under a set temperature and load. The formula is MFR = 600 × m / t.
Compare the Two Versions
The ZY-3004S has a temperature range from room temperature to 400°C. Temperature fluctuation is ±0.5°C. Temperature recovery time is ≤4min. Display resolution is 0.1°C. It has auto and manual cutting. The ZY-3004Y has better performance. Its temperature range is room temperature to 350°C. Temperature display error is ≤±0.2°C. Temperature fluctuation is ±0.1°C. Constant temperature accuracy is ±0.5°C. Clock accuracy is 0.1 second. Piston displacement error is ±0.01mm. It has a micro thermal printer and LCD display. The die inner diameter is Φ2.095±0.005mm. Die length is 8.000±0.025mm. Barrel inner diameter is Φ9.550±0.025mm. Test weights range from 0.325kg to 21.600kg across 8 levels. Relative error is ≤0.5%. This melt flow index instrument from our factory will serve you well.
|
Item |
ZY-3004S |
ZY-3004Y |
|
Temperature Range |
Room temperature ~ 400°C |
Room temperature ~ 350°C |
|
Temperature Fluctuation |
±0.5°C |
±0.1°C |
|
Temperature Display Error |
--- |
≤±0.2°C |
|
Temperature Recovery Time |
≤4min |
≤4min |
|
Display Resolution |
0.1°C |
0.1°C |
|
Constant Temperature Accuracy |
--- |
±0.5°C |
|
Clock Accuracy |
--- |
0.1s |
|
Piston Displacement Error |
--- |
±0.01mm |
|
Cutting Method |
Auto/Manual |
Auto/Manual |
|
Special Configuration |
--- |
Micro thermal printer, LCD display |
|
Dimension |
320×490×630mm |
320×490×630mm |
|
Net Weight (Main Unit) |
--- |
50kg (weights not included) |
|
Power |
AC220V 50Hz |
AC220V 50Hz |
Common Die and Barrel Parameters (ZY-3004Y)
|
Part |
Specification |
|
Die Inner Diameter |
Φ2.095±0.005mm |
|
Die Length |
8.000±0.025mm |
|
Barrel Inner Diameter |
Φ9.550±0.025mm |
|
Piston Rod Head Diameter |
9.475±0.015mm |
|
Piston Rod Head Length |
6.350±0.100mm |
Test Weights (ZY-3004Y)
|
Level |
Weight |
|
Level 1 |
0.325kg (piston rod + weight tray + heat shield + No.1 weight body) |
|
Level 2 |
1.200 kg |
|
Level 3 |
2.160 kg |
|
Level 4 |
3.800 kg |
|
Level 5 |
5.000 kg |
|
Level 6 |
10.000 kg |
|
Level 7 |
12.500 kg |
|
Level 8 |
21.600 kg |
Test Condition Table (For ZY-3004S, also reference for ZY-3004Y)
|
No. |
Die Diameter (mm) |
Test Temp (°C) |
Die Coefficient |
Load (kg) |
|
1 |
2.095 |
190 |
70 |
0.325 |
|
2 |
2.095 |
190 |
464 |
2.160 |
|
3 |
2.095 |
190 |
1073 |
5.000 |
|
4 |
2.095 |
190 |
2146 |
10.00 |
|
5 |
2.095 |
190 |
4635 |
21.60 |
|
6 |
2.095 |
200 |
1073 |
5.000 |
|
7 |
2.095 |
200 |
2146 |
10.00 |
|
8 |
2.095 |
220 |
2146 |
10.00 |
|
9 |
2.095 |
230 |
70 |
0.325 |
|
10 |
2.095 |
230 |
258 |
1.200 |
|
11 |
2.095 |
230 |
464 |
2.160 |
|
12 |
2.095 |
230 |
815 |
3.800 |
|
13 |
2.095 |
230 |
1073 |
5.000 |
|
14 |
2.095 |
275 |
70 |
0.325 |
|
15 |
2.095 |
300 |
258 |
1.200 |
