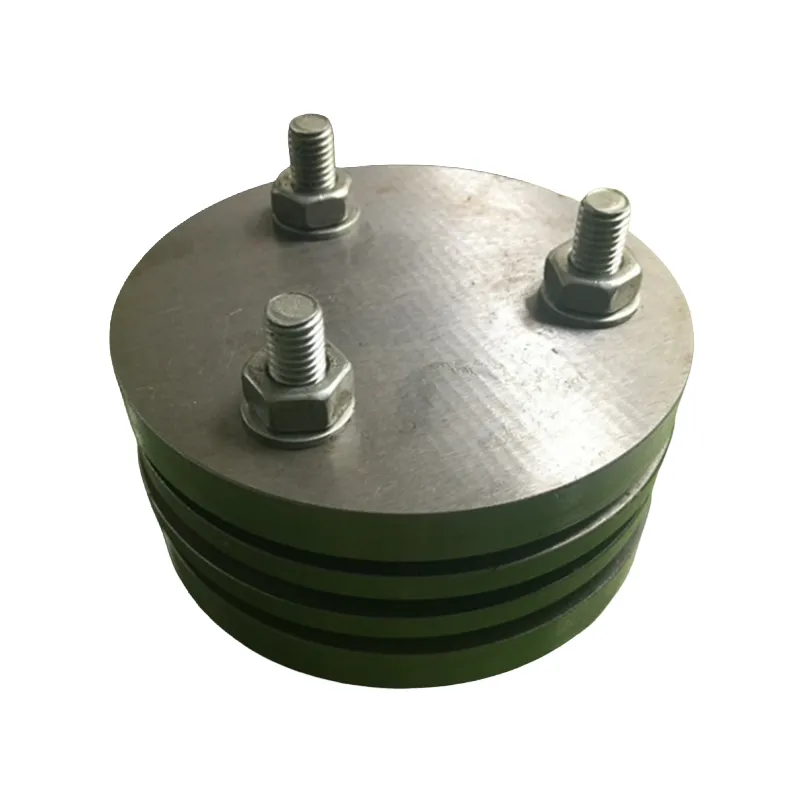

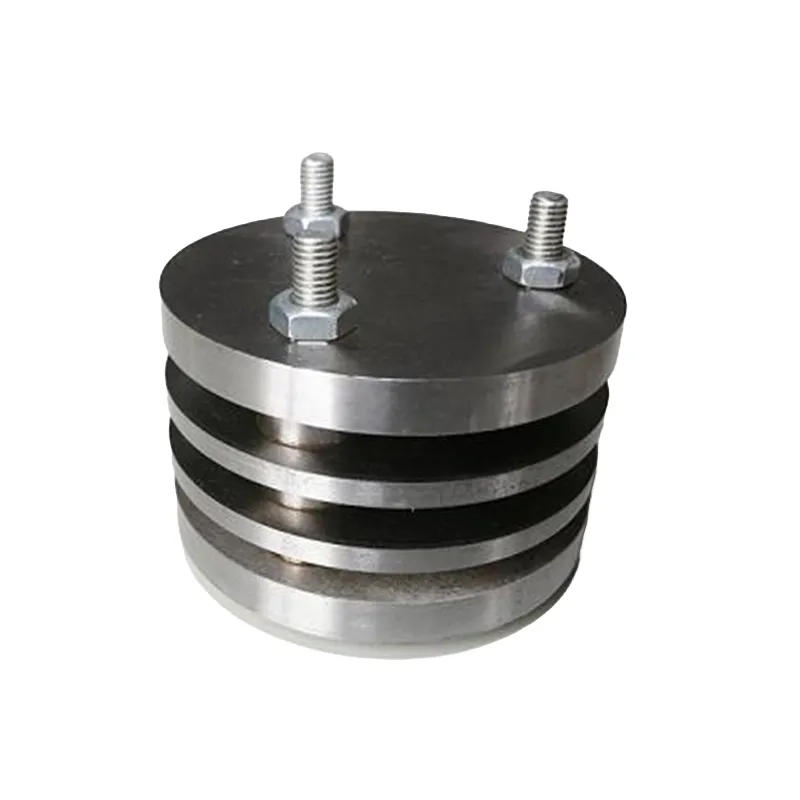

Compression Set Apparatus
A Reliable 17-Year Factory
We are a Chinese factory with 17 years of experience. Our name is Yangzhou Zhengyi. We make testing equipment. Our factory covers 1000 square meters. We have 10 skilled production workers. We also have our own R&D team. We believe good testing tools help customers make better products. This compression set apparatus is one of our good products. We use it for vulcanized rubber and thermoplastic rubber. Users can test rubber under normal temperature, high temperature, or low temperature. They use a fixed compression rate for a set time. Then they measure the rubber deformation. This data is very important for rubber formulas and production processes.
Real Feedback from Customers
One customer makes car sealing strips. They told us after using our compression set apparatus, their product pass rate went up by 15%. This is real feedback, not an advertisement. Our product uses parallel steel plate limiters and fasteners. It fully meets GB7759 and ISO815 standards. We offer two sample types, type A and type B. Type A sample has diameter 29mm and height 12.5mm. Type B sample has diameter 13mm and height 6.3mm. The limiter height has three compression rates: 25%, 15%, and 10%. You can choose based on your test standard.
Quality and Order Flexibility
Our factory does 100% full inspection on every compression set apparatus before shipping. We also accept third-party inspection. You can buy just one unit. One order can mix different models. If you want your own brand, we support OEM/ODM production. You can also send us your drawings. We will make the product exactly as you need. This device has outer diameter 115mm and height about 110mm. It weighs only 3.5kg. It is small and easy to use. It is a good helper for rubber factories, testing labs, and research centers.
Product Parameter Table
|
Item |
Parameter |
|
Model |
ZY-1014 |
|
Applicable Standards |
GB7759, ISO815 |
|
Sample Type |
Type A / Type B |
|
Type A Sample Size |
Diameter 29mm, height 12.5mm |
|
Type B Sample Size |
Diameter 13mm, height 6.3mm |
|
Limiter Height (25% compression) |
Type A: 9.3-9.4mm / Type B: 4.7-4.8mm |
|
Limiter Height (15% compression) |
Type A: 10.6-10.7mm / Type B: 5.3-5.4mm |
|
Limiter Height (10% compression) |
Type A: 11.25-11.3mm / Type B: 5.65-5.7mm |
|
Dimension (Dia×Height) |
φ115mm × about 110mm |
|
Weight |
3.5kg |
