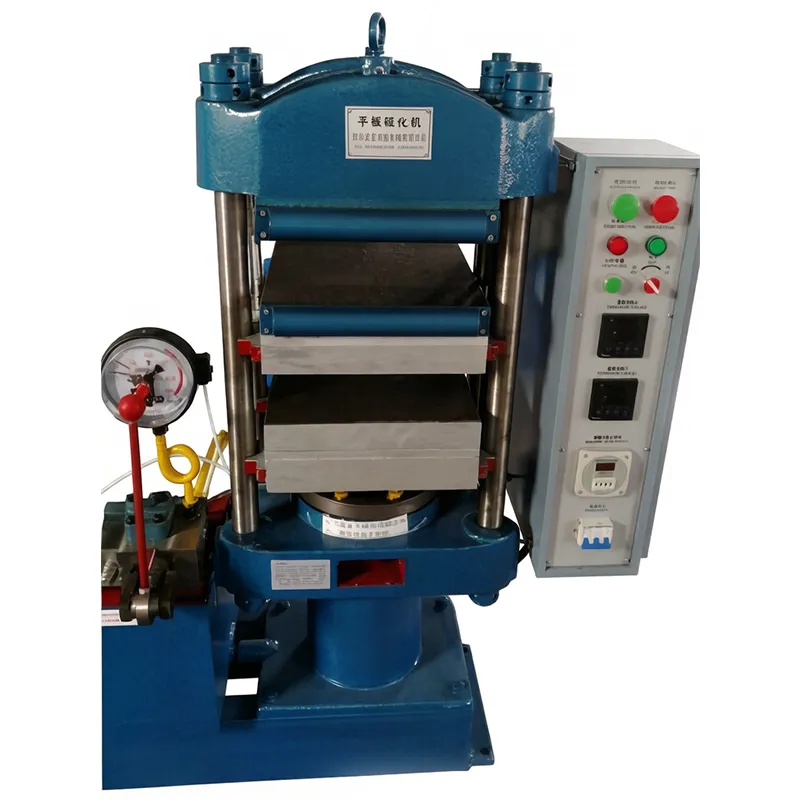

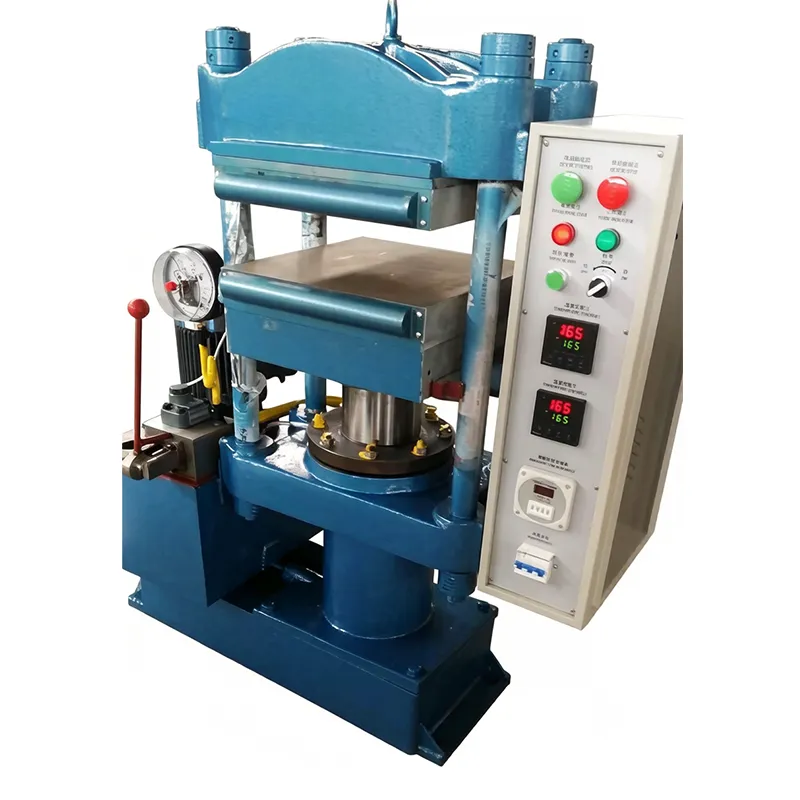

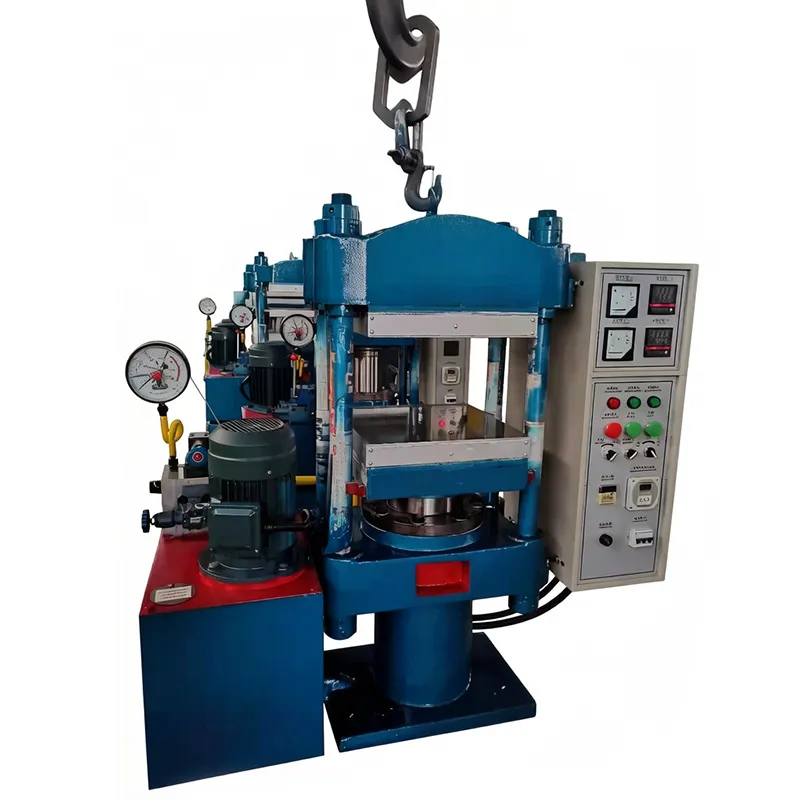

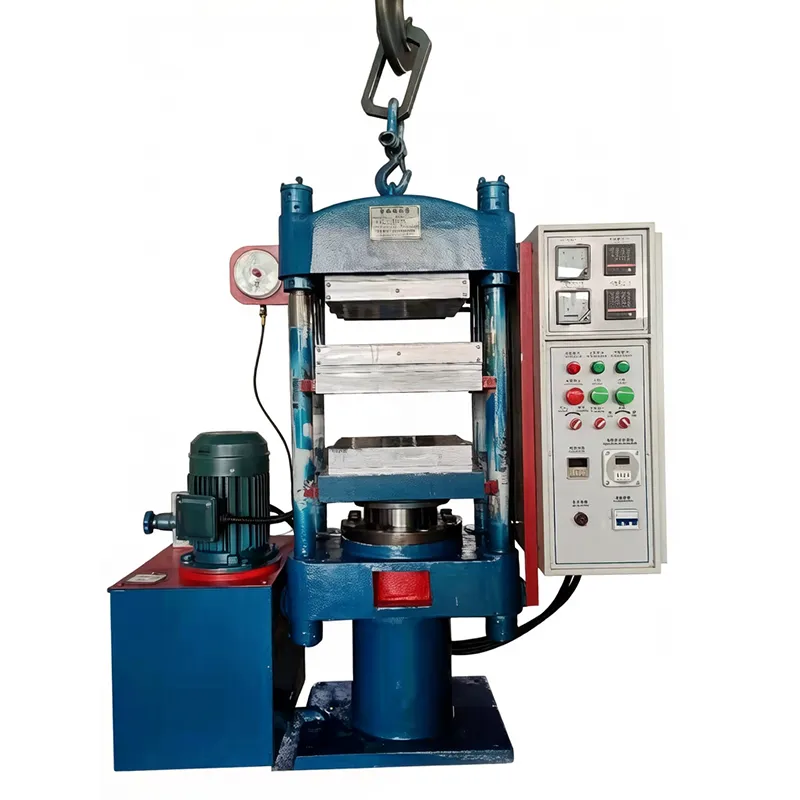

Plate Vulcanizing Press
A Strong Press for Rubber and Plastic
We are Yangzhou Zhengyi, a factory with 17 years of experience. Our plate vulcanizing press helps you vulcanize rubber products. You also use it for plastic, rubber foam, bakelite, and thermoset materials. We have four models. The 25T and 25T water-cooled have 25 tons of pressure. The 50T and 50T water-cooled have 50 tons of pressure. The water-cooled models cool down fast. So every product works well for labs and factories.
Design and Performance
All models use a mechanical-hydraulic-electrical design. They have semi-automatic performance. The frame is a column type. It is strong and clean. The hydraulic cylinder, top beam, and moving table are made of ductile iron. That gives stable and long life. The hydraulic system uses a single pump. It is simple and reliable. The electrical parts are good and the temperature control is accurate. The heaters are pipe resistors inside the hot plates. They use little power and do not stick to rubber. The plate temperature is even.
Specs for Each Model
For the 25T and 25T water cooled: clamping force 0.25MN, plate gap 110mm, plate size 350×350mm, heating power 2.4KW per plate, plunger stroke 250mm, rise speed ≥20mm/s, max temperature ≤260℃, motor 2.2KW, size 1135×650×1400mm. The 25T water cooled adds water cooling.
For the 50T and 50T water cooled: clamping force 0.5MN, plate gap 150mm, plate size 400×400mm, heating power 2.4KW per plate, plunger stroke 250mm, rise speed ≥23mm/s, fall speed ≥15mm/s, max temperature ≤250℃, motor 2.2KW, size 1500×750×1500mm, weight 1000kg. The 50T water cooled adds water cooling.
So you can pick the plate vulcanizing press that fits your work.
Why Buy From Us
Use 46# or 30# anti-wear hydraulic oil in the tank. Keep the oil clean. The temperature controller and contactor set the plate heat. The pressure gauge controls work pressure and refill pressure. The digital timer gives accurate time and an alarm when done. We test every product before shipping. You can order just one unit. We also mix different models in one order. We give a one-year warranty. After-sale service works 24/7. Our plate vulcanizing press is a good choice for your production or lab.
Parameter Table
|
Model |
Clamping Force |
Plate Gap |
Plate Size |
Heating Power |
Plunger Stroke |
Rise Speed |
Fall Speed |
Heating |
Cooling |
Max Temp |
Motor Power |
Dimensions (L×W×H) |
Weight |
|
25T |
0.25MN |
110mm |
350×350mm |
2.4KW |
250mm |
≥20mm/s |
--- |
Electric |
Natural |
≤260℃ |
2.2KW |
1135×650×1400mm |
--- |
|
25T water-cooled |
0.25MN |
110mm |
350×350mm |
2.4KW |
250mm |
≥20mm/s |
--- |
Electric |
Water |
≤260℃ |
2.2KW |
1135×650×1400mm |
--- |
|
50T |
0.5MN |
150mm |
400×400mm |
2.4KW |
250mm |
≥23mm/s |
≥15mm/s |
Electric |
Natural |
≤250℃ |
2.2KW |
1500×750×1500mm |
1000kg |
|
50T water-cooled |
0.5MN |
150mm |
400×400mm |
2.4KW |
250mm |
≥23mm/s |
≥15mm/s |
Electric |
