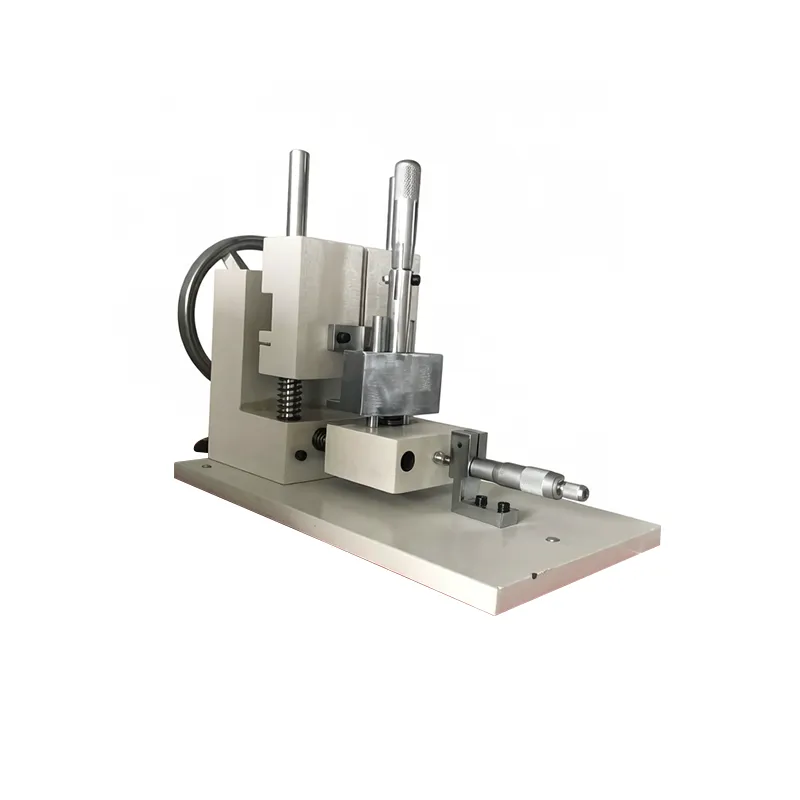

Notch Sample Making Machine

We are Yangzhou Zhengyi, a factory with 17 years of experience. Our notch sample making machine works with cantilever beam and simply supported beam impact testers. You use this product to cut standard notches in non-metal materials. Without it, you cannot make the right notch for impact tests. So this notch sample making machine is very important for your lab.

The tool stroke is 24mm. The feed speed is 4mm/min. The machine supports many notch types: Type A, Type B, and Type C (C1/C2/C3).
Type A tool: 45±1 degree, radius 0.25±0.025.
Type B tool: 45±1 degree, radius 1.0±0.025.
Type C1: 45±1 degree, radius 0.1±0.02.
Type C2: thickness 0.8±0.1, radius ≤0.1.
Type C3: thickness 2±0.1, radius 0.2±0.05.
There is also a special tool for profiles: 45±1 degree, radius 0.2±0.05.
If you do not tell us which type, we send Type A as the standard. The feed amount is 0.5mm per stroke. The feed travel is 10mm. You can cut samples up to 20mm thick. This product gives you clean and accurate notches.

We have lathes, grinders, milling machines, and wire cutting tools in our factory. So we make our own core parts. That means good quality and on-time delivery. We can also make custom tooling from your drawings. We test every notch sample making machine before shipping. You can buy just one unit. We give a one-year warranty (wear parts not included). Our service team works 24/7. Return orders go faster. Choose our product for your impact test sample preparation.
