Automatic Hole Punch Machine
Product Overview
The automatic hole punch machine is a specimen cutting press that drives a shaped cutting die through rubber or plastic sheet material. It prepares dumbbell, tear, brittleness, and other standard test pieces before tensile or physical-property testing.
It is used in rubber and plastics laboratories, cable factories, production quality-control rooms, and testing centers. Manual, electric, and pneumatic versions allow the cutting method to be matched to the required force, specimen volume, available utilities, and die size.
Core Advantages

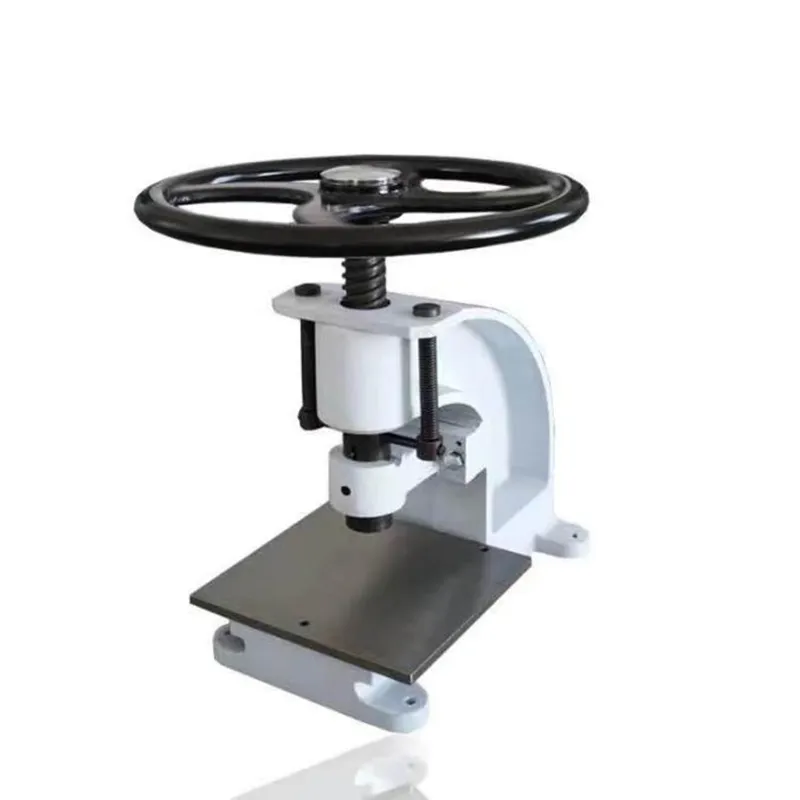

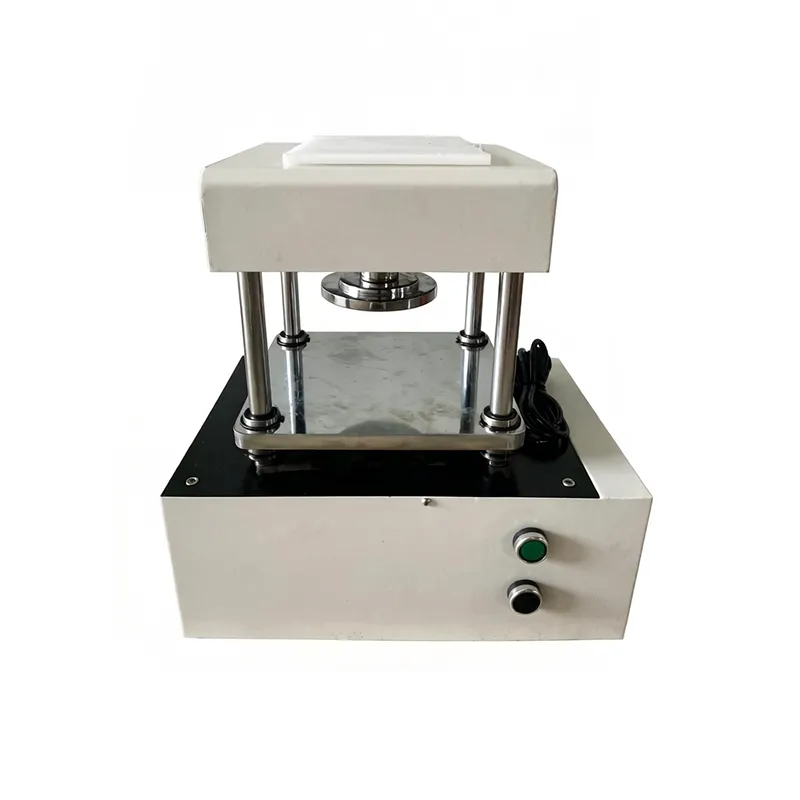

Four drive configurations. The series includes a manual screw model, an electric model with approximately 30 kN cutting force, a 1.5-ton pneumatic model, and a 3-ton pneumatic model. Occasional laboratory cutting can use the manual format, while repeated or thicker-sheet preparation can be assigned to powered models.
Working area matched to die size. Worktables range from 175 x 140 mm to 320 x 220 mm, and powered strokes extend to 100 or 115 mm. Larger dumbbell and tear dies can be positioned fully on the table, reducing partial cuts caused by unsupported die edges.

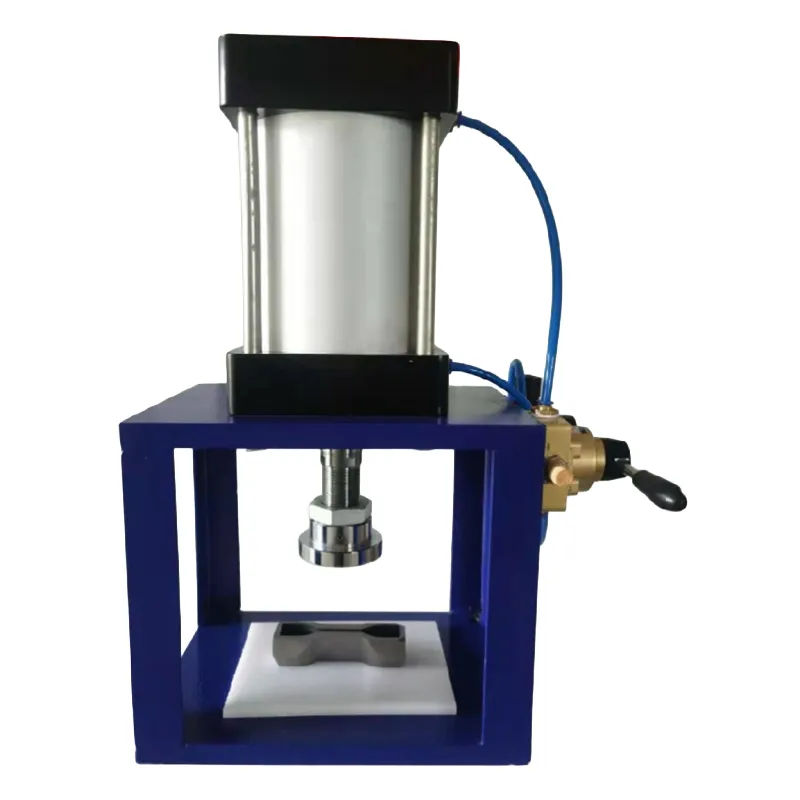

Controlled pneumatic stroke. The pneumatic models operate at 0.4-0.6 MPa or 0.4-0.8 MPa. When many specimens are cut from the same sheet, a repeatable air-driven stroke applies a more consistent pressing action than varying hand force.
Customization Capability
Force and table selection. Cutting force, stroke, table dimensions, and drive type can be matched to the material thickness, die perimeter, and daily specimen quantity.
Die mounting and cutting pad. Die-holder dimensions, quick-location parts, cutting-pad material and thickness, and table stops can be adapted to the laboratory's existing cutting dies or supplied as a matched system.
Controls and utilities. Voltage, air connection, panel labeling, guarding arrangement, and two-hand or other operator-control details can be specified for the receiving facility.
Parameter Table
|
Model |
Type |
Cutting Stroke |
Air Pressure |
Work Table Size |
Cutting Force |
Power |
Dimensions (L×W×H) |
Weight |
|
ZY-1025S |
Manual |
25mm |
--- |
175×140mm |
--- |
Manual |
320×450×515mm |
65kg |
|
ZY-1025D |
Electric |
20-100mm |
--- |
180×250mm |
~30kN |
AC220V 50Hz |
350×220×450mm |
60kg |
|
ZY-1025QB |
Pneumatic standard |
100mm |
0.4-0.6MPa |
320×220mm |
~1.5T |
Needs air |
--- |
~40kg |
|
ZY-1025QG |
Pneumatic high-spec |
115mm |
0.4-0.8MPa |
320×220mm |
~3T |
Needs air |
400×400×750mm |
~70kg |
Quality Control
Press alignment. The upper pressing surface, worktable, guide movement, and die position are checked for parallel contact. Stroke and force response are verified so the die enters the cutting pad evenly rather than loading one edge first.
Trial-cut inspection. Representative rubber or plastic sheet is cut with an approved die. The complete perimeter, specimen dimensions, cut-edge condition, and pad penetration are checked before the machine is released.
Power and air-system test. Electric models are checked for control response and travel limits; pneumatic models are checked for pressure response and leakage. Guards, fasteners, and the full operating cycle receive a final inspection before packing.
FAQ
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 machine.
Q: How long does a customized model take?
A: A customized model normally takes about 30 days.
Q: Do all models require compressed air?
A: No. Only the pneumatic models require an air supply; manual and electric models do not.
Q: When should the cutting pad be replaced?
A: Replace it when deep grooves prevent the die from contacting evenly or begin to mark the specimen edge.
