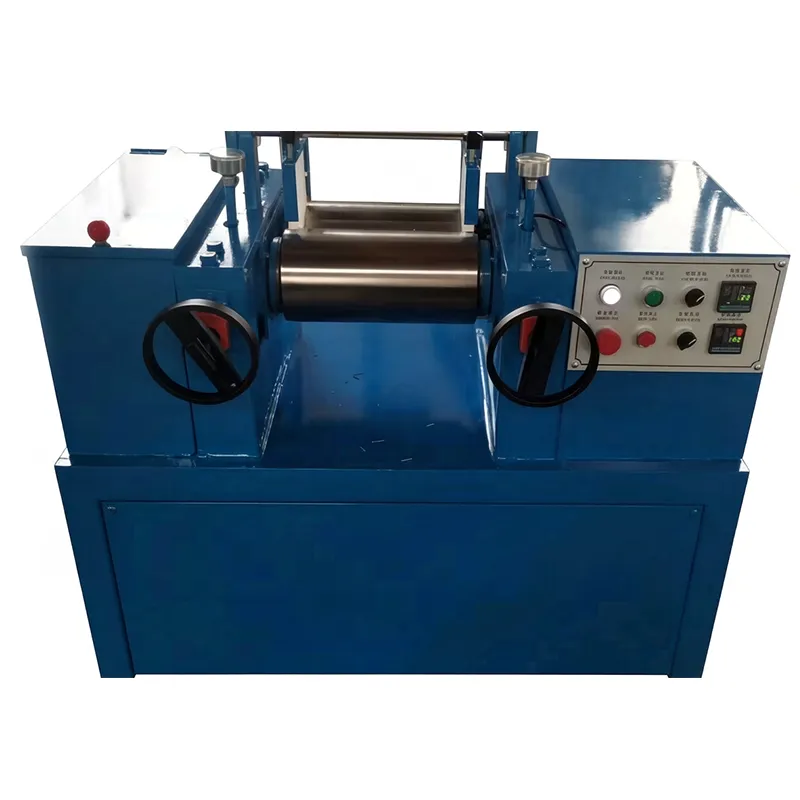

Lab Two Roll Mill

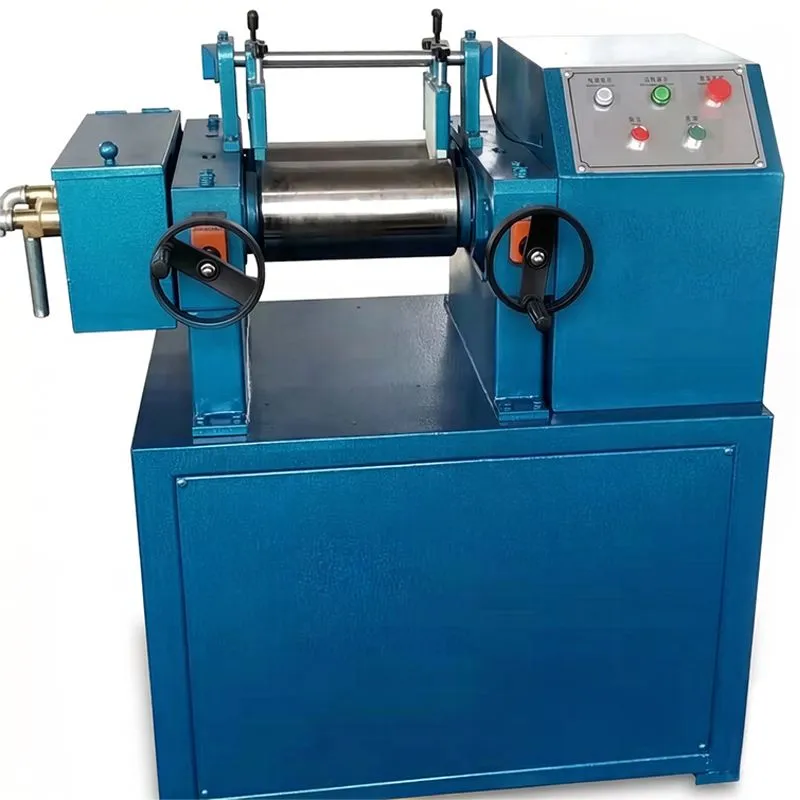

We are Yangzhou Zhengyi, a factory with 17 years of experience. Our lab two roll mill helps you mix, plasticate, and warm rubber and plastic. You use this product in factories and labs. We have two models. The XK-160 uses water cooling. The SK-160 uses electric heating. Both are 6inch roll mills. They are common tools for rubber and plastic work.

Both models have a roll diameter of 160mm and a roll face width of 320mm. The front and back roll speed ratio is 1:1.35. The front roll linear speed is 9.04m/min (17.85 rpm). The back roll linear speed is 12m/min (24 rpm). The roll gap is 0-5mm. The feed amount per batch is 1-2kg. Roll hardness is HRC65. The gap adjustment uses a ratchet. Seals are skeleton oil seals, so they are clean. Both come with a nylon material stopper and an emergency brake. The gearbox is hard-faced with low noise. Bearings run smooth and last long. This lab two roll mill gives you good control.

The XK-160 (water cooling) has a 5.5KW motor. The cooling is water. Its size is 1300×900×1300mm. Weight is about 800kg. The SK-160 (electric heating) has a 4KW motor and 3.6KW heating power. The heating temperature goes from room temperature up to 250℃. Its size is also 1300×900×1300mm, but weight is about 700kg. Both use a Y132M2-4 motor, a gearbox, and chain sprockets. So you choose the product based on whether you need heating or cooling.

We have a full set of machines: saws, lathes, grinders, milling machines, and wire cutting. So we make our own core parts. That means good quality and on-time delivery. Standard orders ship in 7-10 days. Custom orders take about 30 days. Return orders go faster. We give a one-year warranty (wear parts not included). After-sale service is 24/7. We support FOB and use fumigation-free plywood for export. Our lab two roll mill is a solid machine for your daily work.

Common parts: Chilled alloy rolls (hardness ≥HRC65), ratchet gap adjustment, skeleton oil seals, nylon stopper, emergency brake, hardfaced gearbox, bearing drive.
